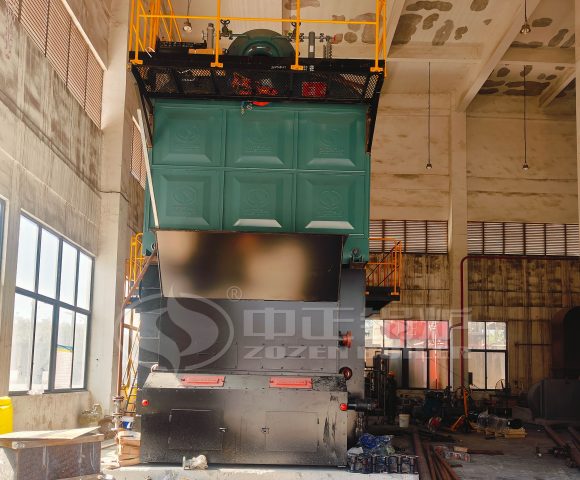

SZL Series Biomass Water Tube Boiler

ZOZEN  Biomass Water Tube Boiler

Product thermal capacity: 6-35 t/h

Working pressure: 1-2.5 MPa

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.

Available industries: Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital


SZL Series Biomass Water Tube Boiler Introduction

he SZL series biomass water tube boiler adopts a water tube structure, offering excellent thermal efficiency and stable operation performance. The design of the SZL series biomass water tube boiler fully considers the characteristics of biomass fuels, ensuring complete and stable combustion, effectively reducing harmful gas emissions, and meeting environmental protection requirements.

The SZL series biomass water tube boiler features a double-drum structure, providing strong pressure-bearing capacity and high thermal efficiency. This series of boilers also boasts a high degree of automation, equipped with an advanced automatic control system, enabling intelligent operation, reducing manual intervention, and lowering operational costs. The boiler is also equipped with safety protection functions to ensure the long-term stable operation of the equipment.

SZL Series Biomass Water Tube Boiler Features

High Efficiency and Energy Saving: The SZL series biomass water tube boiler uses advanced heat exchange technology, significantly improving thermal efficiency and reducing energy consumption, helping enterprises save on fuel costs.

Environmental Emissions: The design of the SZL series biomass water tube boiler is optimized to ensure complete combustion of biomass fuels, reducing harmful gas emissions, meeting strict environmental standards, and promoting green production.

Automation Control: The SZL series biomass water tube boiler is equipped with an advanced automatic control system that intelligently adjusts the boiler’s operating status, reducing manual intervention and enhancing operational convenience and safety.

Fuel Versatility: The SZL series biomass water tube boiler can adapt to various biomass fuels such as wood chips, straw, and wood pieces, ensuring stable and efficient operation under different fuel conditions, and flexibly meeting the needs of different users.

SZL Series Biomass Water Tube Boilerr Specification

Model Rated thermal power (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport dimension (m)
SZL6-1.25-SCⅢ 6 1.25 194 6.20×2.80×3.65
7.20×2.60×2.80
SZL6-1.6-SCⅢ 6 1.6 204 6.20×2.80×3.65
7.20×2.60×2.80
SZL6-2.5-SCⅢ 6 2.5 225 6.20×2.80×3.65
7.20×2.60×2.80
SZL8-1.25-SCⅢ 8 1.25 194 7.10×3.52×3.65
7.80×3.10×2.80
SZL8-1.6-SCⅢ 8 1.6 204 7.10×3.52×3.65
7.80×3.10×2.80
SZL8-2.5-SCⅢ 8 2.5 225 7.10×3.52×3.65
7.80×3.10×2.80
SZL10-1.25-SCⅢ 10 1.25 194 7.90×3.52×3.65
8.40×3.10×2.80
SZL10-1.6-SCⅢ 10 1.6 204 7.90×3.52×3.65
8.40×3.10×2.80
SZL10-2.5-SCⅢ 10 2.5 225 7.90×3.52×3.65
8.40×3.10×2.80
SZL12-1.25-SCⅢ 12 1.25 194 8.80×3.52×3.65
8.40×3.10×2.80
SZL12-1.6-SCⅢ 12 1.6 204 8.80×3.52×3.65
8.40×3.10×2.80
SZL12-2.5-SCⅢ 12 2.5 225 8.80×3.52×3.65
8.40×3.10×2.80
SZL15-1.25-SCⅢ 15 1.25 194 9.60×3.20×3.65
8.30×3.30×3.00
SZL15-1.6-SCⅢ 15 1.6 204 9.60×3.20×3.65
8.30×3.30×3.00
SZL15-2.5-SCⅢ 15 2.5 225 9.60×3.20×3.65
8.30×3.30×3.00
SZL20-1.25-SCⅢ 20 1.25 194 10.65×3.28×3.60
9.30×3.81×2.80
SZL20-1.6-SCⅢ 20 1.6 204 10.65×3.28×3.60
9.30×3.81×2.80
SZL20-2.5-SCⅢ 20 2.5 225 10.65×3.28×3.60
9.30×3.81×2.80
SZL25-1.25-SCⅢ 25 1.25 194 11.65×3.80×3.60
9.30×3.81×3.00
SZL25-1.6-SCⅢ 25 1.6 204 11.65×3.80×3.60
9.30×3.81×3.00
SZL25-2.5-SCⅢ 25 2.5 225 11.65×3.80×3.60
9.30×3.81×3.00
SZL30-1.25-SCⅢ 30 1.25 194 10.00×3.36×3.60
SZL30-1.6-SCⅢ 30 1.6 204 10.00×3.36×3.60
SZL30-2.5-SCⅢ 30 2.5 225 10.00×3.36×3.60
SZL35-1.25-SCⅢ 35 1.25 194 10.00×3.65×3.85
SZL35-1.6-SCⅢ 35 1.6 204 10.00×3.65×3.85
SZL35-2.5-SCⅢ 35 2.5 225 10.00×3.65×3.85
